Root Settings in iOS 9.3.3

Immediately after I heard that the Pangu 9.2-9.3.3 jailbreak was updated to support my iPod 6th Gen, I ran over and jailbroke it. I'm not going to go into how to jailbreak it, but I am going to talk about the root settings (AKA "internal settings" or "prototype settings". It's the same menu HiddenSettings7 showed.)

I'm too lazy to write a tweak to activate it, but I'm almost certain it'd be easier with Activator compared to my method. Oh well, too late.

Go ahead and install cycript and OpenSSH. Log in, and run cycript -p SpringBoard. Make sure you're on your home screen right now. Now, do the following:

[[this.SBPrototypeController sharedInstance] showOrHide]

I'm sure you're wondering, how'd you know to do that? A quick tl;dr: magic.

I was looking through coolstar's iOS 9.3.3 headers for RootSettings, as I knew that's what it was called in iOS 9.0.2. When I searched, I noticed that SBRootSettings existed with a bunch of instance-only methods (you have to have a usable instance in order to run them). So, I looked for something creating an instance of SBRootSettings. That's when I found SBPrototypeController. It had an instance of SBRootSettings, is created directly by SpringBoard, and has an extra bonus: the void showOrHide. Hey, I'll take it.

Bringing the point back, this means SpringBoard itself. I grabbed the shared instance of SBPrototypeController made, and called showOrHide.

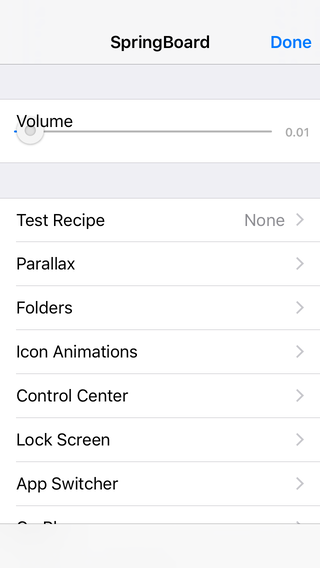

Main RootSettings menu

Just like in iOS 9.0.2, the first thing we have in the menu is Test Recipe, a beautiful little thing for testing various iOS features. I'm not going through all of them, but here are some highlights:

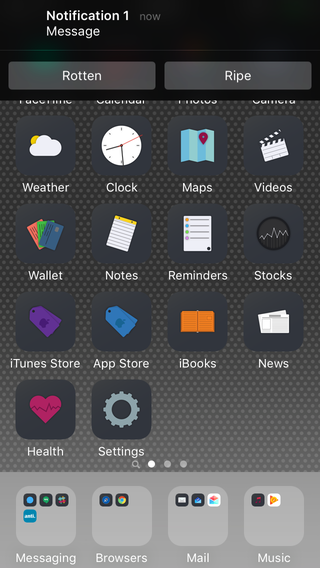

Bulletin Data Provider

Bulletin Data Provider notification

If you spam this enough, you'll notice that in the group notification (X new notifications) the title is "Produce".

External SBAlertItem Tour and SpringBoard AlertItem Tour

I could not fit both of these nicely in the page. Here's an Imgur album for External SBAlertItem Tour and one for SpringBoard AlertItem tour. I would like to note that you activate these by pressing your volume up. To change the dialog, press volume down. After the sixth tour item of SpringBoard AlertItem Tour, SpringBoard crashed for me.

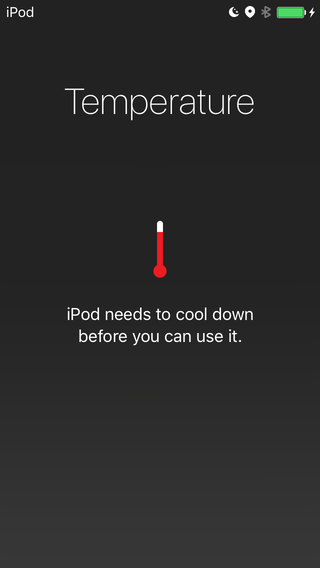

Thermal Trap

iPod needs to cool down

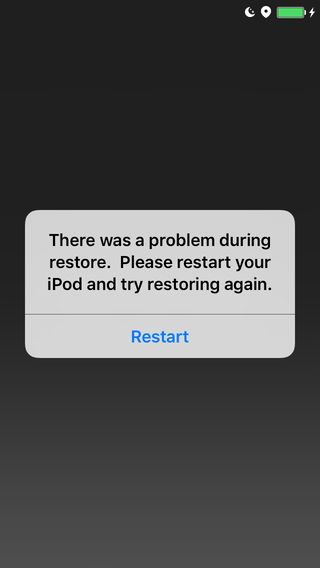

Enter/Exit Fake iTunes Restore State

Restore screen

I recommend you don't do this as I had no choice but to kill SpringBoard or restart.

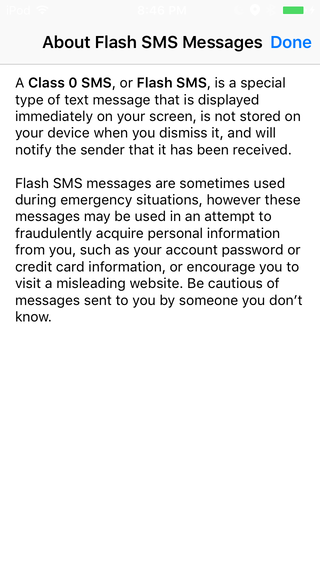

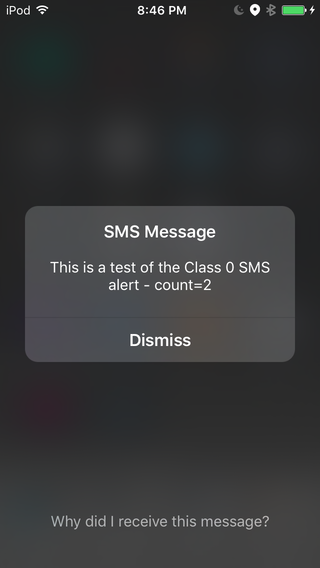

Test Class0 SMS

Class0 SMS Class0 SMS Explanation

I for one had no idea Class0/Flash SMS existed. Well, you learn something new everyday. Apparently my carrier doesn't allow them to send anymore, from what I've read doing research, so I've never encountered one.

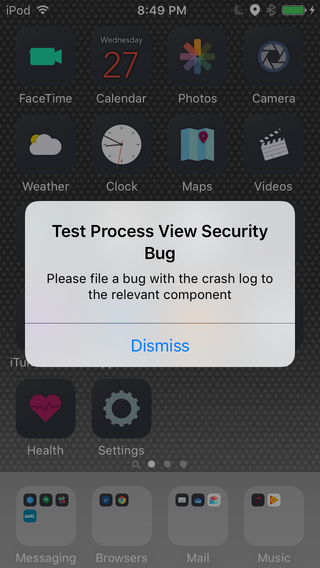

Test Insecure Drawing Alert

Drawing Alert

Logout Process Alert

Logout Process Alert

This one is cool. After investigating I think it's meant for the new iPad Classroom features. I recommend you don't test this as it took over my whole iPod while it tried to sync. (You're not just getting a dialog, by the way. Take a look at the device console. It's actually syncing to iCloud with a null classroom identifier.) I'm pretty sure MU stands for Mobile User, as apparent by Mo... in the name.

And finally, one more:

Test Composed Wallpapers

I've been saving one as I though it was extra interesting. This one I will go into extra detail. I'm not going to show you photos of this one on my iPod. Basically the first time you hit volume up to activate this recipe, it turns your background red. I thought to myself "Oh, nice." Well, that's not all. It then changed my background to photos that reminded me of Game of Thrones. I thought what?

Let's bring this story back to SBPrototypeController, who happens to have a SBTestSettings instance. If you just clicked on that link, that's not very helpful at describing what's happening, except for the SBVolumePressBandit part. Well, going back to search, I found SBComposedWallpaperTestRecipe. Here's what we want.

Still doesn't say much though, so after going in with Hopper and disassembling the function, I found that it actually downloads the wallpapers off of Imgur. I honestly don't know why, but probably for the same reason Google has a cat photo in Google Play Services (I'll leave it up to you to find where I got that from).

Well, let's bring it back to Apple. Here's the links it cycles through for wallpapers:

You have to admit, they're very pretty. I sent them to a friend and he's using them in his cycle of wallpapers.

Well, that concludes everything I've found so far related to Test Recipes. Thanks for reading!
